Product Description

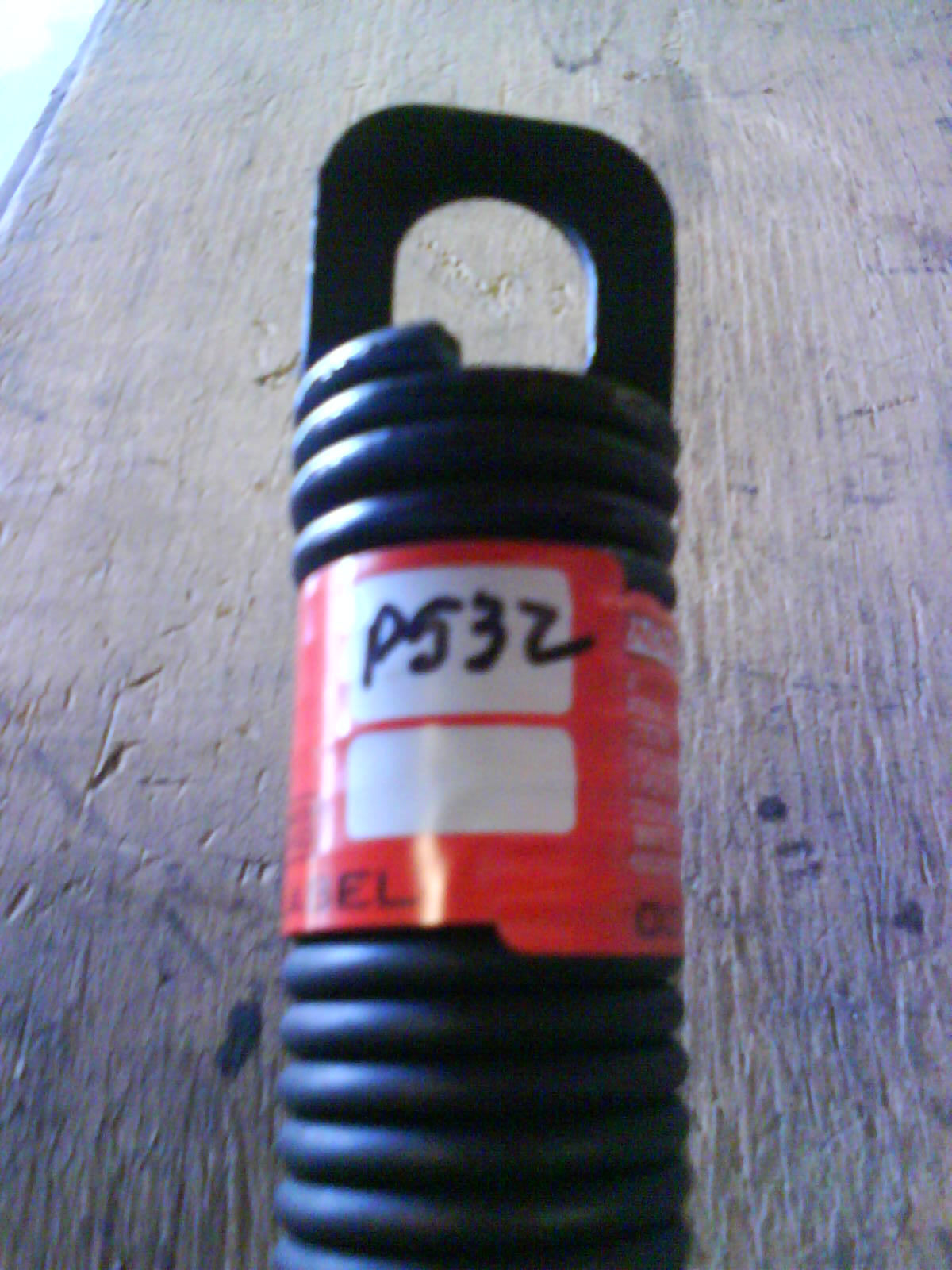

P532
Length Over Coils: 32" in.
Outside Diameter: 1-5/8" in.
Type of Ends: PLUG
Wire Diameter & Gauge: (.207)#5
Initial Tension: 135-145**
Max. Allowable Stretch: 26.5" in.
SPECIAL ORDER - PLEASE CALL 818-846-3301 TO ORDER
**Initial Tension is the load in pounds required to stretch the spring the first inch only. Each additional inch of stretch is called the "rate" and is a fixed amount that is added to the initial tension. The rate varies with each spring size and length.
